AV Installation Services Ripon

AV Installation Services in Ripon for The Royal British Legion Care Home

Definition Audio Visual has recently completed another professional AV installation Services at the Royal British Legion Care Home in Ripon. We were instructed to design and install a complete audio and visual system for both the main bar area and the chapel, creating a flexible solution for entertainment, presentations, services, and outdoor events.

Main Bar Area AV Installation

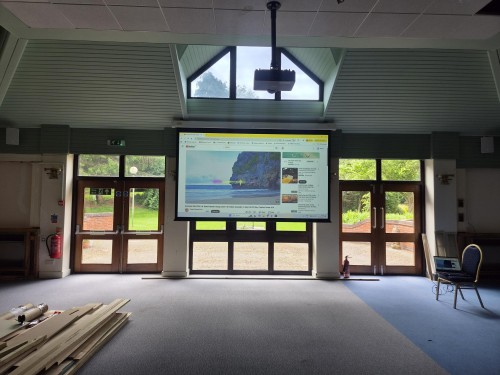

For the projector installation within the main bar area, we installed an Epson 6200-lumen short throw projector projecting onto a Sapphire 3-metre motorised projection screen, providing a bright and clear image for residents and staff, for their meetings and showing films.

To allow simple local connectivity, we installed a Bluestream Active HDMI wall plate along with a Bluestream receiver, making it easy to connect external devices when required.

As the main room is also used as an overflow area for chapel services, we installed a Lumens 4K camera which allows live chapel services to be displayed on the main projection screen in the adjoining room.

We also installed a Panasonic DVD player so that residents can enjoy films and entertainment within the space.

Equipment Rack Installation
Within the equipment cabinet located in the storeroom, we installed:

Cloud 3-zone mixer
Two Sennheiser wireless microphone systems
Sennheiser antenna distribution system
Bluestream HDMI switcher
Tascam single CD player with Bluetooth receiver
This centralised rack system provides reliable audio and video distribution throughout the building while keeping the equipment secure, organised, and easy to maintain.

Main Room Audio System Installation
For the main bar area sound system installation, we installed four white Optimal Audio Cuboid 6 loudspeakers positioned in the corners of the room to provide even audio coverage throughout the space.

The speakers are powered by a Cloud XLi800 amplifier installed within the equipment rack, delivering clear and consistent sound for speeches, background music, films, and live chapel streaming.

Chapel Sound System Install
Within the chapel, we installed a pair of black Optimal Audio Cuboid 6TX loudspeakers powered by a Lab Gruppen 120-watt 100-volt line amplifier.

The system provides excellent speech intelligibility and balanced audio coverage for chapel services and events.

Outdoor Speaker Installation
For the outdoor areas, we installed an additional pair of black Optimal Audio Cuboid 6TX loudspeakers powered by a Lab Gruppen 120-watt 100-volt line amplifier.

This allows the care home to host outdoor events with clear and reliable audio coverage, whether they are playing music or need to make announcements outside.

Wireless Microphone System
By installing a Sennheiser wireless microphone system featuring both a handheld wireless microphone and a lapel microphone system, staff are able to use the microphones flexibly throughout the chapel, main bar area, and outdoor space. By installing an antenna distribution system with remote antennas installed in the bar area gives the user complete assurance there will be no signal drop out at the crucial moment.

This provides a versatile solution for speeches, services, announcements, and events.

Auracast Hearing Assistance System
To improve accessibility for residents and visitors with hearing impairments, we installed the latest Auracast Bluetooth hearing assistance system complete with four Auracast receivers.

This modern hearing solution provides improved clarity and accessibility during chapel services, speeches, and entertainment events.
